Subframe System

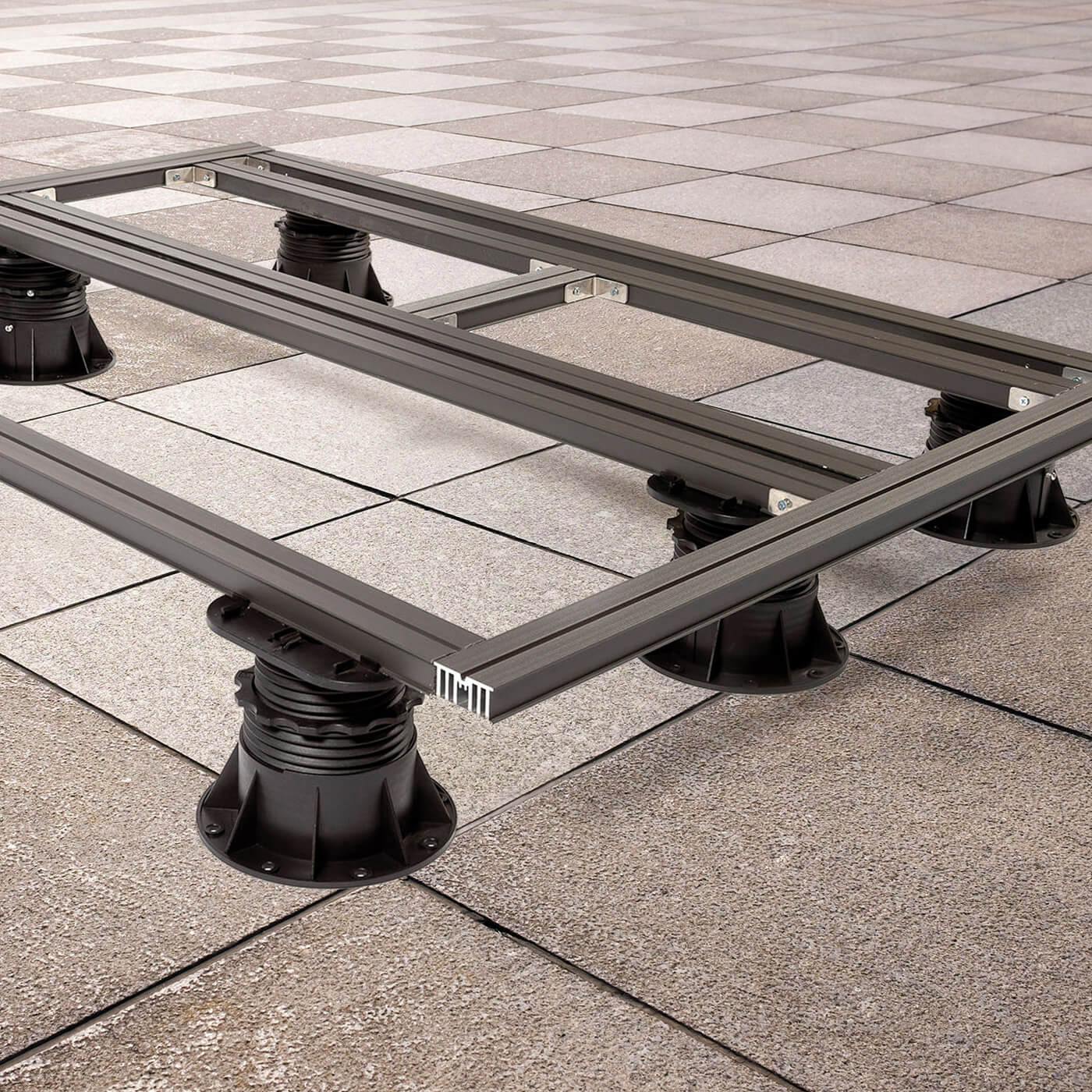

Saige has developed a complete subframe system to help protect your investment from the ground up. Featuring a complete decking support system, the Saige subframe system consists of variable height joist cradles and pedestals and high strength aluminium joists to offer a highly versatile and adaptable subframe system for both residential and commercial projects.

If this interests you why not Meet Your Installer?

Discover Saige Subframe System

Long life 100% quality inspected Resistant to mould Hidden fixings Anti-slip decking British design Splinter-free Ultra Low maintenance 10 year warranty Long life 100% quality inspected Resistant to mould Hidden fixings Anti-slip decking British design Splinter-free Ultra Low maintenance 10 year warranty

Cradles and Pedestals

Saige subframe is a complete solution that includes aluminium joists, joist cradles, and pedestals with fire-resistant options. Our fire-rated cradles and pedestals are easily distinguished by their grey colour, whereas the standard non-fire-resistant range is black.

Dimensions:
Height Range
18-42mm
61-87mm
85-185mm

View Specification

Joists

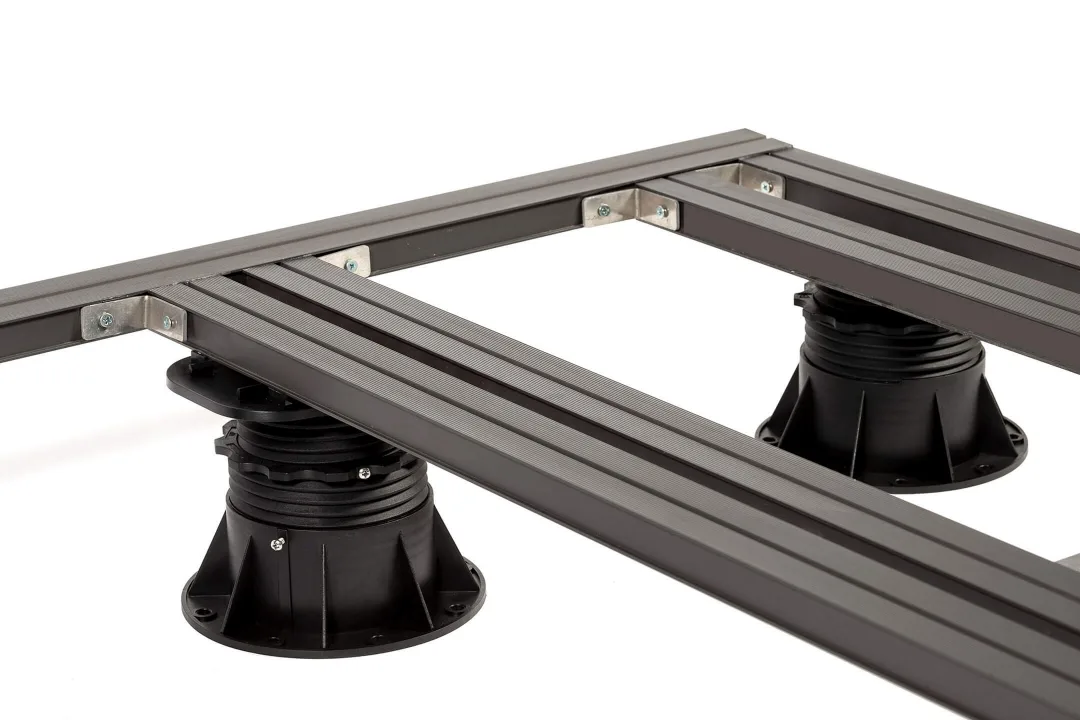

All aluminium subframe joists have been powder-coated (RAL 9005) to prevent them from being visible through decking gaps. The joists' structure means they are not only durable, but can also work over a much longer span than similar systems, reducing the number of pedestals and cradles required and, as a result, the cost and labour time. Supports can be placed every 800mm on a 50mm joist and still provide maximum strength.

Dimensions:
3600mm x 50mm x 25mm

View Specification
